1. Product Introduction
1.1 Product Description

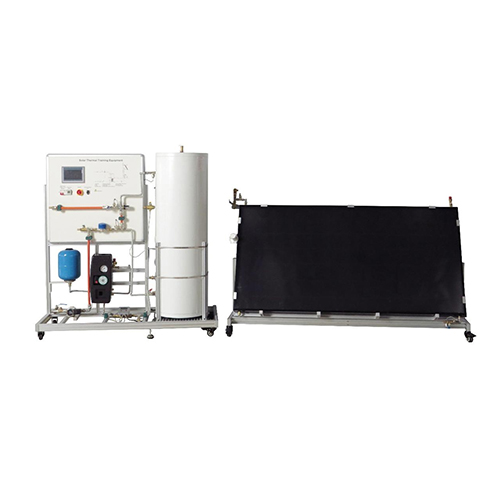

The solar collector is an experimental device for studying solar heat. It can measure and collect temperature, flow rate, pressure and other data and realize data communication. The device supports local and software remote operation. It can simulate the whole process of domestic hot water production, storage and transportation.
1.2 Product Features
1. Experimental device for studying solar heat (single solar water heater 200L, 2.2m² collector)
2. Local and software remote operation
3.Multiple measurement data collection (temperature, flow rate, pressure, etc.) and data communication.
4. Technical economic and environmental analysis.
5. Thermal balance, size and rationality of components.
6. Electrical wiring and pipe connection.
7. Movable solar collector.
2. Technical specifications
2.1 Technical parameters
Three-speed circulation booster pump: automatic start and stop, DC24V, 50~85W, 25~35L/min
Temperature transmitter: input DC24V, -50~150℃, output 4~20mA
Flat plate collector (blue film): absorption area 2 square meters 1X2m
Water storage tank: 150L
2.2 Dimensions and weight
Dimensions1:1630mm*680mm*1840mm
Weight1:156kg
Dimensions2:2230mm*830mm*1450mm
Weight2:127kg


3. Product component
3.1 Product main part
No.    Name
1    Touch screen
2    Circuit breaker
3    Electric energy meter
4    Load switch
5    Network cable interface
6    System schematic diagram
7    Domestic water switch valve
8    Mixed water outlet temperature sensor
9    Constant temperature mixing valve
10    Cold water drain valve
11    Cold water meter
12    Cold water temperature sensor
13    Expansion tank
14    Circulation safety valve
15    Cold water inlet valve, filter
16    Cold water check valve
17    Cold water booster pump
18    Solar working pump station (including circulation pump, pressure gauge, check valve)
19    Heat meter
20    Cold water inlet safety valve
21    Circulation inlet switch valve
22    Water tank outlet temperature sensor
23    Water tank exhaust valve
24    Water tank
25    Collector-exhaust valve
26    Collector-water outlet manual switch valve
27    Light intensity sensor
28    Collector-water outlet temperature sensor
29    Solar collector
30    Collector-safety valve
31    Collector-water inlet temperature sensor
32    Collector-water inlet manual switch valve
33    Check valve
34    Pressure gauge
35    Circulation pump
36    Circulation pump flow adjustment knob
37    Manual valve 1
38    Manual valve 2
39    Manual valve 3
40    Circulation fluid discharge port
41    Circulation fluid filling port
42    Expansion tank interface
43    Safety valve
3.2 Product accessories
No.    Name
1    Bellows
2    Extension cable
3    Network cable
4    Industrial waterproof plug
5    Software USB disk
4.Product Configuration List
No.    Name    Quantity
1    Touch screen    1
2    Circuit breaker    1
3    Electric energy meter    1
4    Load switch    1
5    Network cable interface    1
6    System schematic diagram    1
7    Cold water meter     1
8    Expansion tank    1
9    Check valve    4
10    Booster pump    1
11    Heat meter    1
12    Mixing valve    1
13    Exhaust valve    3
14    Water tank    1
15    Manual switch valve    9
16    Light sensor    1
17    Solar collector    1
18    Pressure gauge    1
19    Circulation pump    1
5. Product teaching experiment list
(1) Bellows connection experiment
(2) Water storage tank water supply experiment
(3) Solar collector water supply experiment
(4) Booster pump boosting experiment
(5) Water outlet temperature experiment
(6) Manual operation of solar working pump station
(7) Self-operation of water tank heater experiment
(8) Automatic mode circulation experiment
(9) Sensor data operation
(10) Drainage experiment
