HFN8 Rope Belt Friction Apparatus Didactic Equipment Vocational Education Equipment Mechanical Training Equipment

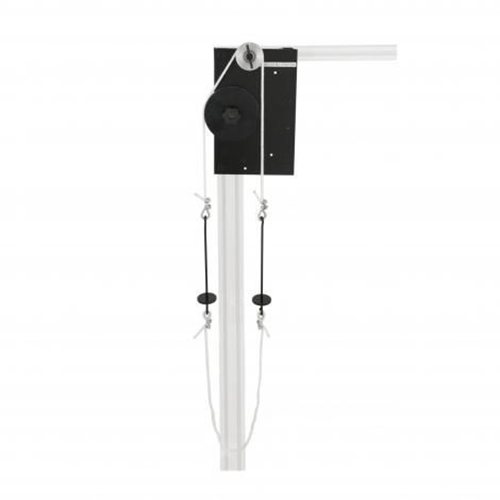

Description The apparatus consists of a wall mounted fixed pulley with a loadedbelt. Four different pulleys are supplied with different vee grooveangles; flat rim, 120°, 90°, and 60°. A load is added to one of twohangers until the rope just begins to slide. This is the datum condition. Loads are now added to both sides of the rope to cause very slowsliding of the rope. This enables the coefficient of friction to be obtained.The angle of lap can be easily varied. Features Wall mounted apparatus for ROPE belts Can be mounted to HST1, HST100, HAC14, HVT12f frames Coefficient of Friction, angle of lap for different belts Four different ‘V’ angled pulleys supplied Single rope with metal ends Customer specific rope can be used Technical Specification 4 x Fixed pulleys Flat; 60°; 90°; 120° pulleys Double hooked hangers Rope assemblies Pulley: 150mm effective diameter Weights & Dimensions Weight: approximately 19kg Length: 250mm Width: 150mm Height: 370mm
