Transformer Didactic Equipment Technical Skills Equipment Electrical Training Equipment

AF438E Transformer Didactic Equipment Technical Skills Equipment Electrical Training Equipment
1. Product Introduction
1.1 Product Description
The Transformer Teaching Instrument is an educational device specifically designed for physics electromagnetism experiments. Through intuitive demonstrations of the transformer's working principle, voltage and current transformation laws, and electromagnetic induction phenomena, it helps students understand core concepts in AC circuits. This instrument combines theory and practice and is suitable for middle schools, vocational schools, and university basic physics laboratories. It is an indispensable auxiliary tool for electromagnetism teaching.
1.2 Product Features
1. The product boasts an excellent, aesthetically pleasing design.
2. The product features a rich array of experimental modules and various transformer types, providing diverse teaching options.
3. The product uses more durable materials, significantly extending its lifespan.
2. Technical Specifications
2.1 Technical Parameters
Power Supply Parameters: Standard three-phase five-wire system, 380V±10%, 50Hz
Operating Environment Requirements: Ambient Temperature: 10℃～30℃; Relative Humidity: < 75% (25℃).
2.2 Dimension and Weight
Dimension: 1650mm × 795mm × 600mm
Weight: Approximately 150kg


3. Product Component Names and Functions

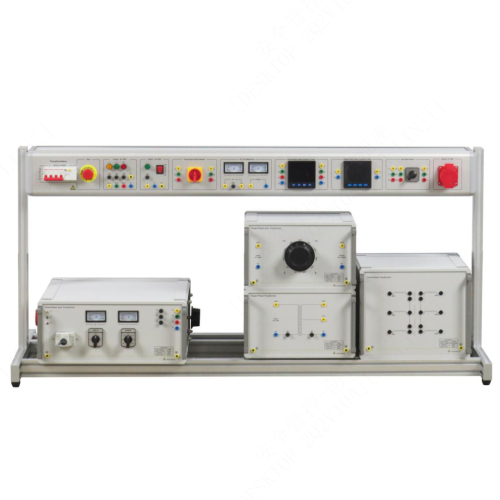

3.1 Main Body of the Product
Number    Name    Quantity
1    4P circuit breaker    1
2    Emergency stop button    1
3    Three-phase power indicator, fuse and 4mm safety connection socket block    1
4    Single-phase voltage indicator, fuse, switch and 4mm safety connection socket block    1
5    Three-phase power switch module    1
6    Ammeter Module    1
7    Voltage Meter Module    1
8    Three-Phase Multifunction Meter Module    1
9    Single-Phase Multifunction Meter Module    1
10    Star and Delta Switches    1
11    Three-Phase Industrial Power Sockets    1
12    Three-Phase Autotransformers    1
13    Single-Phase Autotransformers    1
14    Single-Phase Transformers    1
15    Three-Phase Transformers    1
3.2 Product Accessories
Number    Name    Quantity
1    Three-phase industrial plug power cord    1
2    Yellow 4mm electrical safety connection cable    10
3    Dual-color 4mm electrical safety connection cable    3
4    Black 4mm electrical safety connection cable    5
5    Red 4mm electrical safety connection cable    10
6    Red 4mm electrical safety connection cable    10
7    Green 4mm electrical safety connection cable    10
8    Digital multimeter (with two wires)    1
9    U-shaped plug    5
10    5A Fuse    5
11    6A Fuse    5
12    0.5A fuse    5
13    10A Fuse    15
14    7A Fuse    10
4. Product Teaching Experiment List
(1) Use of Single-Phase Transformer
(2) Use of Three-Phase Transformer
(3) Use of Single-Phase Autotransformer
(4) Use of Three-Phase Autotransformer
